Sinoroader Machinery's environmentally-friendly asphalt mixture mixing equipment fully considers the sources of dust, smoke, odor and noise in the production process. It uses effective methods such as dry fog, dust collection, treatment, photolysis and sound insulation. Control and organized emissions ensure that environmental damage during equipment operation is minimized.

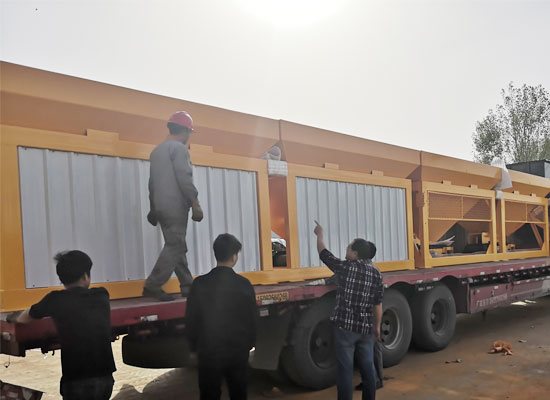

1. Closed cold aggregate distribution system

The cold silo adopts the closed bin form, the dustproof soft curtain is installed on the feeding port, and the industrial grade dry fog dust reducing device is installed outside the feeding port.

The dustproof soft curtain effectively prevents the dust from overflowing quickly.

Ultrasonic sensors for efficient and intelligent control.

The dry mist dust suppression device effectively absorbs dust and forces dust to settle and avoid dust. The dry fog device is controlled by ultrasonic radar and automatically senses the loading position. Only the position for loading is sprayed when feeding, which will not increase the humidity of the aggregate, and can effectively suppress dust.

2. Fully enclosed belt feeding system

The cold aggregate conveying belt adopts a package form to effectively prevent the overflow of the dust.

3. Fully wrapped dry roller

The fully enclosed drying drum is fully covered with soundproof rockwool to reduce noise and reduce heat loss.

4. Fully enclosed induced draft fan

The induced draft fan is fully enclosed by soundproof rock wool to effectively reduce noise.

5. Asphalt, heavy oil flue gas and dust collection system

The bitumen and heavy oil flue gas in the production process are collected and then enter the centralized treatment device; and the dust generated by the white material is directly processed into the dust collector.

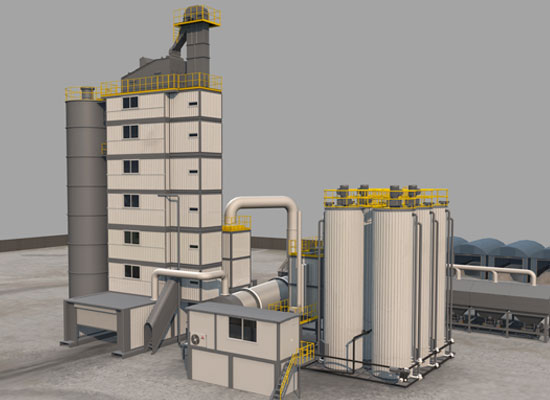

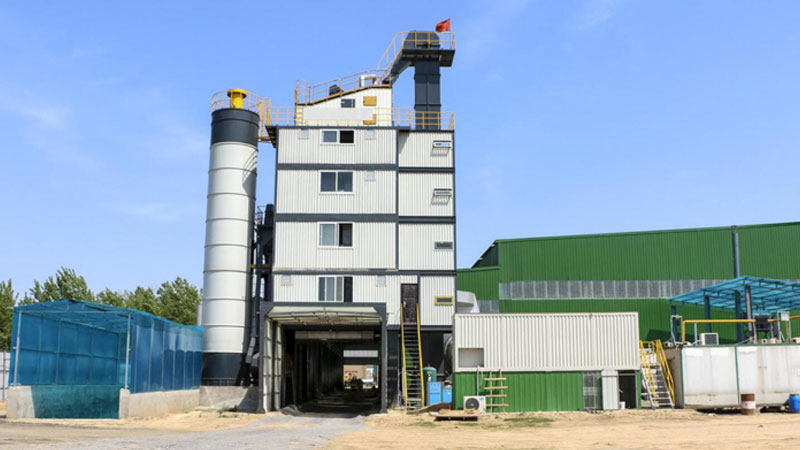

6. Closed mixing main building

The main building is semi-closed or fully enclosed to reduce noise; the high-quality corrugated board is layered and closed, and the appearance is neat and beautiful. Ultra-large transparent glass for easy maintenance and ventilation.

7. Fully enclosed overflow hopper

Super specification material and flash material are stored separately.

8. Front and rear semi-closed lanes

Effectively control dust and smoke overflow when unloading and discharging white materials.

9. Asphalt and heavy oil storage system

Special pipelines collect the bitumen and heavy oil fumes generated during the production process and carry out centralized treatment.

10. Asphalt and heavy oil flue gas centralized treatment device

The bitumen and heavy oil flue gas are collected into the treatment device, and after electrostatic and spray treatment, they are finally degraded into low molecular compounds (such as CO2, H2O, etc.) by UV photolysis.

11. Control room with video surveillance

Video monitoring is installed under the mixing pot and medium heavy oil in the lane to facilitate equipment operation.

With the development of the national economy, the problem of environmental pollution has become more and more serious. Further improving the environmental performance of existing asphalt mixing equipment and providing customers with more environmentally friendly equipment has become an important task of Sinoroader Machinery.

The “Standard Edition” environmentally friendly asphalt mixing equipment is a cost-effective environmental protection system developed by Sinoroader Machinery based on its high-quality mixing equipment and its experience in environmental protection equipment in Australia, Russia and Singapore.
